Mounting Brackets designed for gas struts and lift support applications.
Key Features

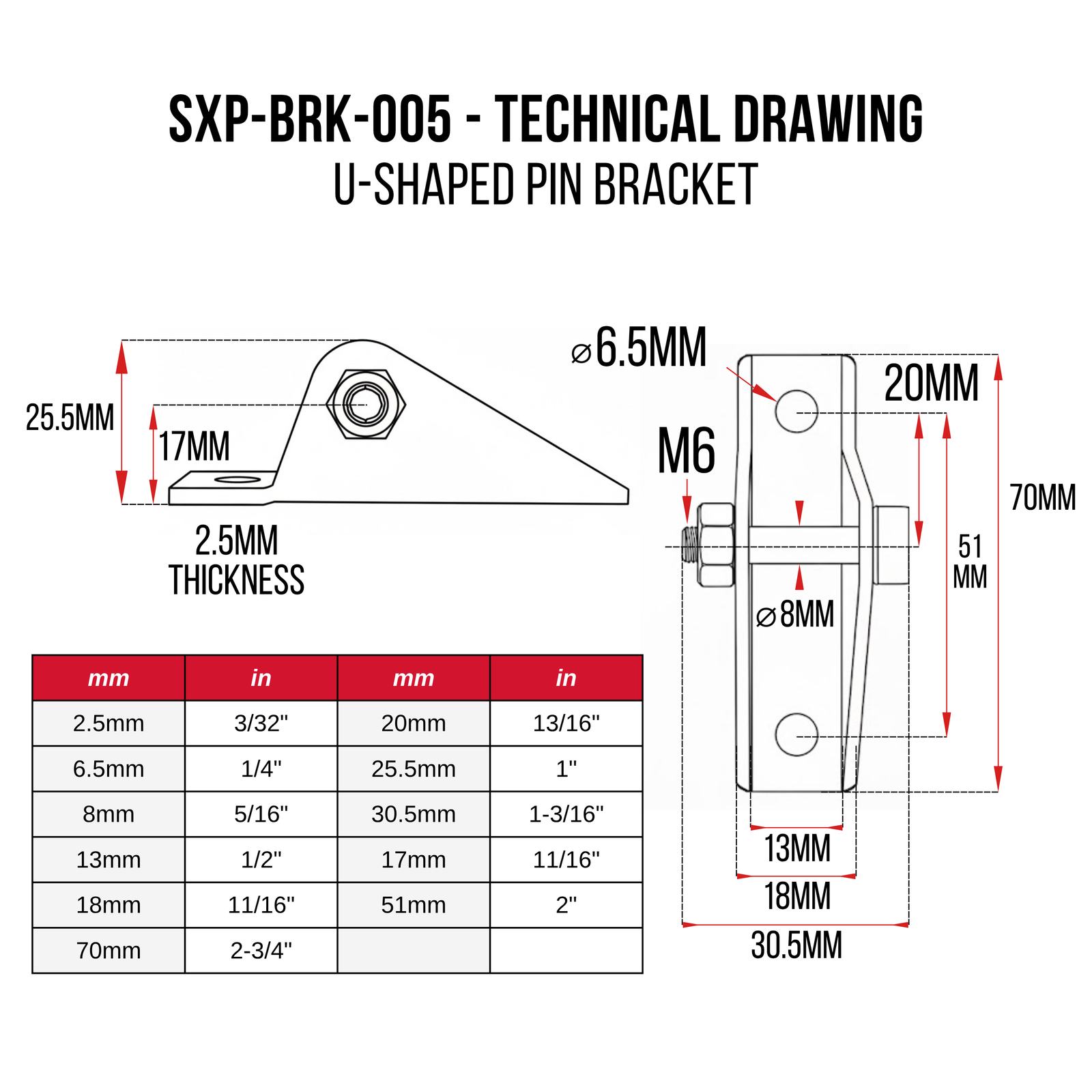

- U-Shaped Pin Bracket – For gas struts and lift supports with eyelet or clevis ends.

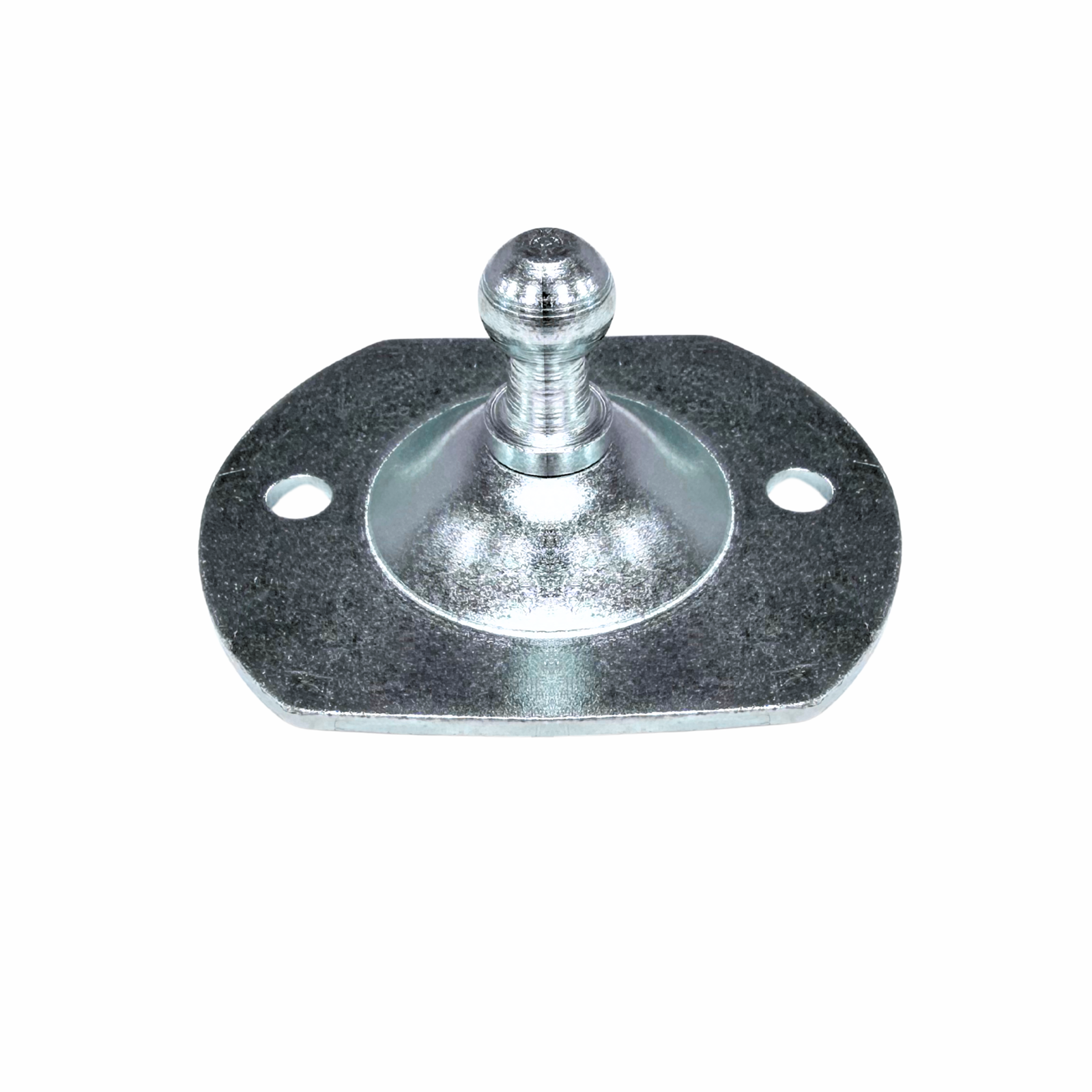

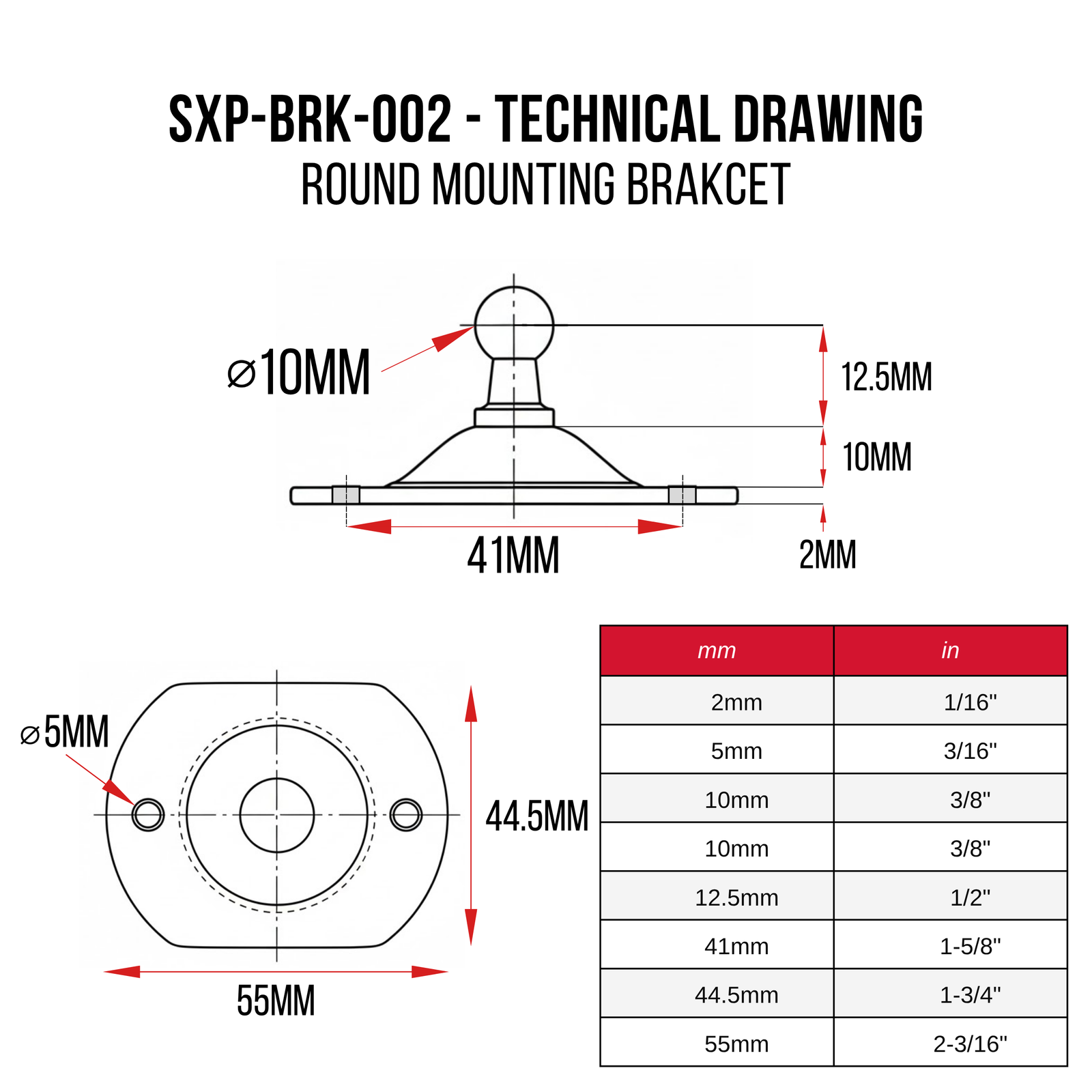

- Round Bracket – Low-profile flat plate for surface mounting.
- 90° Internal Bracket – Angled to mount neatly inside recesses and frames.

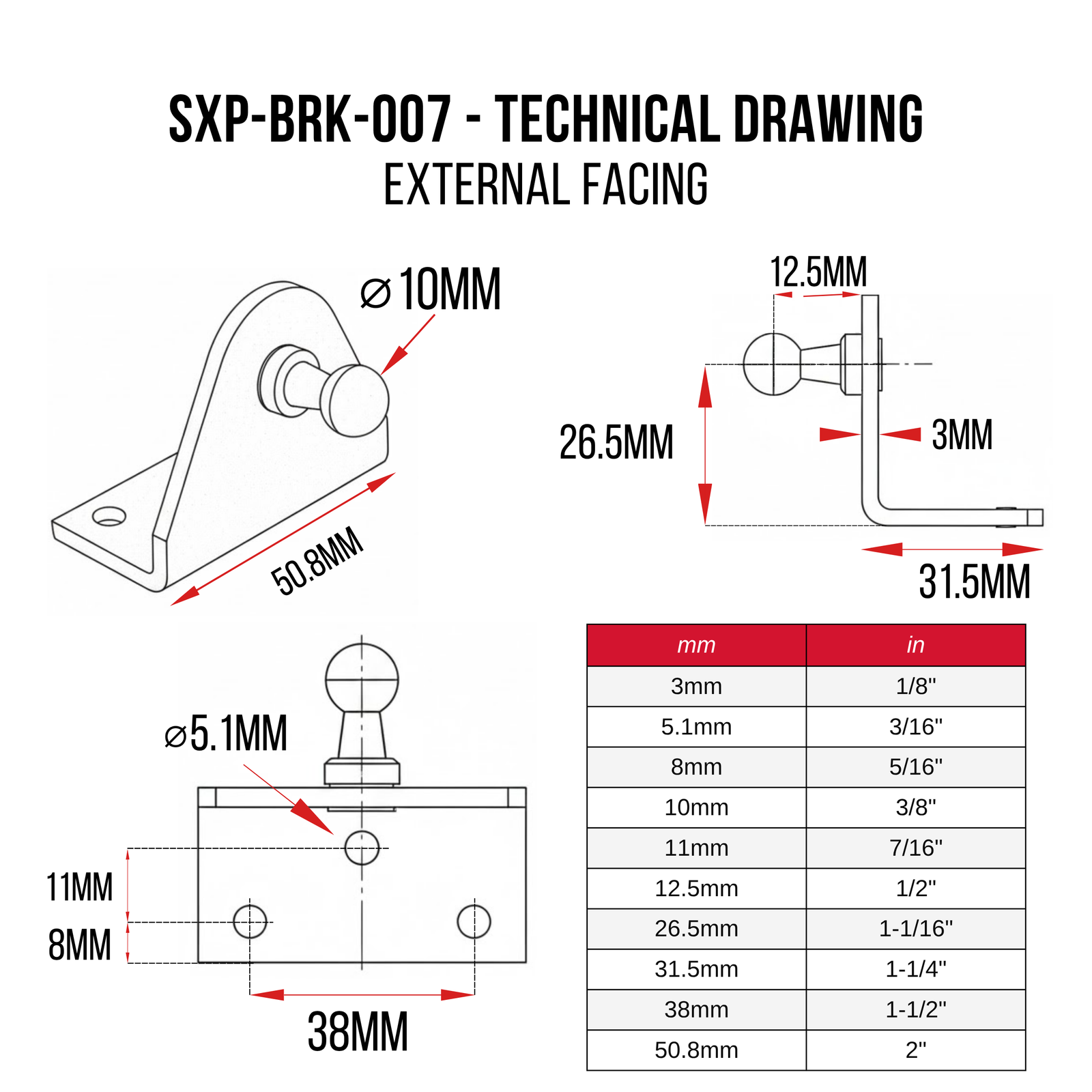

- 90° External Bracket – Angled to mount onto outer faces and edges where internal recess is limited.
- Pre-Drilled Mounting Holes – Ready to bolt or screw into place, no drilling of the bracket required.
- Zinc Plated Finish – Helps protect against rust and extends product lifespan.
- Full Pivot Clearance – Shaped to allow the strut to swing freely through its complete stroke.
- Reliable Performance – Designed to carry the compression and extension loads generated by gas struts.
